Aluminum & Steel Truss Floating Docks for All Water Levels

Hewitt’s truss floating docks are built for stability, strength, and adaptability—making them the perfect solution for deep water and environments with frequent water level changes. Unlike traditional floating dock systems, these truss docks use an open-web frame that reduces weight and wave resistance while maximizing structural performance. Ideal for residential and commercial applications, this modular floating dock system is easy to configure, install, and expand.

Each floating dock section is available in lengths from 4 to 24 feet and widths from 2 to 6 feet, with aluminum or galvanized steel frame options to match your corrosion resistance and strength requirements. Supported by military-grade float tanks and reinforced with structural bracing, every floating dock with steel frame construction is designed to remain level, secure, and low-maintenance throughout the season. Whether you're planning custom floating docks with upper decks or need a reliable floating boat dock for rough conditions, Hewitt delivers a high-performance solution tailored to your shoreline.

TRUSS FLOATING DOCK CONSTRUCTION

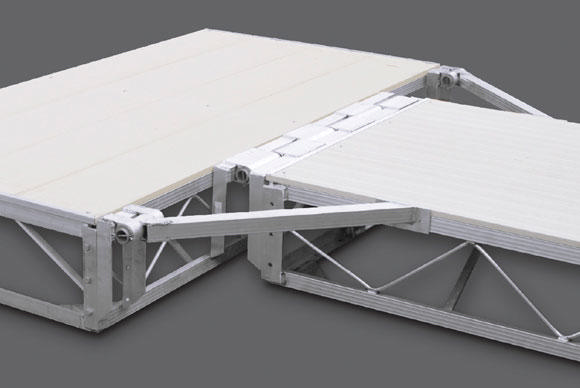

Reinforced Truss Frame Construction

Hewitt’s steel truss floating docks are built with a tapered truss frame that delivers superior strength and stability. Inspired by bridge and crane construction, the open-web design minimizes weight while reducing wave resistance—making it ideal for floating dock systems in rough water or changing lake levels. The frame is available in aluminum or galvanized steel and reinforced with structural angle crossbars for maximum durability. Compared to traditional floating docks, truss frames also allow the dock to sit higher in the water, improving clearance and reducing splash-over in choppy conditions.

High-Performance Floatation Tanks

Each floating dock section is supported by heavy-duty float tanks that meet U.S. military specifications. These tanks feature an EPS foam core inside a seamless polyethylene shell, offering excellent buoyancy, crack resistance, and year-round performance—even in freezing temperatures. For more discreet installations, float tanks can be sunken into the frame for a lower profile on the water. Float tanks are available in a wide range of sizes with different load carrying capacities.

Modular Design for Flexible Dock Layouts

From residential floating docks to large commercial platforms, Hewitt’s modular design makes customization simple. Sections connect using durable floating dock hinges that allow movement with water level changes while reducing structural stress. Available in multiple widths and configurations, these floating dock sections can be tailored to match any site conditions or floating dock plans.

TRUSS FLOATING DOCK FEATURES

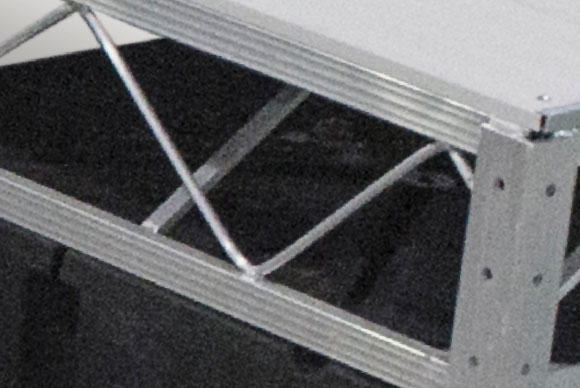

Bridged Framework

Open-sided truss dock design adds strength while reducing drag. Proven engineering from bridge and rafter systems keeps your floating boat dock stable in any conditions.

Corner Support Hinge

Floating dock sections connect with reinforced corner gussets that improve stability and prevent structural stress from water movement or heavy use.

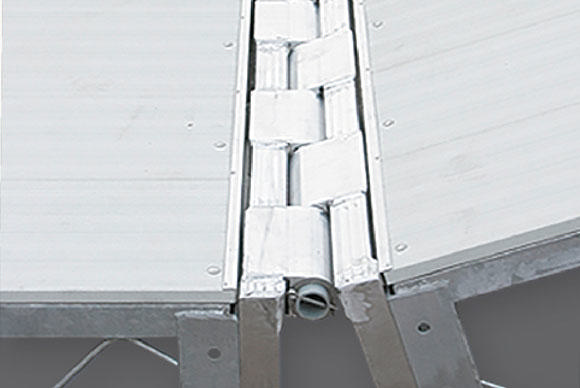

Piano Hinge

Designed to allow flexibility between dock sections while maintaining overall rigidity. Ideal for modular floating docks installed in areas with rough water or water level changes.

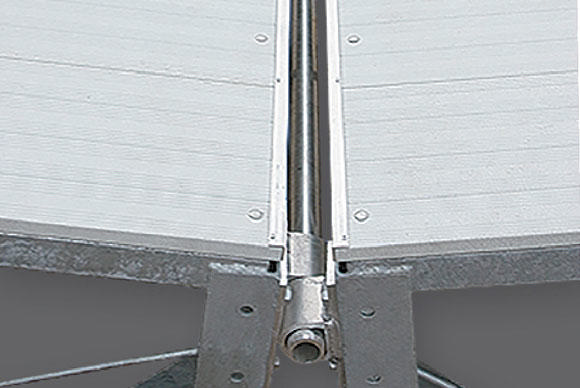

Heavy Duty Hinge

A full-width hinge option for clean lines and secure connections between dock sections. Supports smooth transitions between aluminum floating docks and other layouts.

DECKING OPTIONS

SKID GUARD

CEDAR

ALUMINUM

THRUFLOW

Learn More About Dock Decking Options

CUSTOM FLOATING DOCK SYSTEMS

Hewitt’s modular floating docks come in sections, allowing you to bring any commercial or residential waterfront plan and design to life. You can choose from various widths, lengths, and decking options, and even add upper decks or roofs to create your ideal floating dock system. Whether you prefer steel or aluminum frames, if our standard offerings don’t match your vision, we’ll work with you to include unique performance features.

Contact Hewitt or your local Hewitt distributor, share your plans and requirements, and we’ll help you turn your custom floating dock plans into reality.
